Steel fire doors
Slim steel fire doors, E30 and EI30
Fire-rated glazed steel doors with the narrow sightlines of a traditional steel door. All three systems are designed to meet BS EN 1634-1, and two have published prices, so you can budget before you call.
Three fire-rated systems
E30 · Integrity
PI40 E30
Slim hot-rolled steel with fire-rated glass, giving 30 minutes' fire integrity. Single and double doors, sidelights and fixed frames.
Single door from £2,500 excl. VAT, ex-works.
E30 · Integrity
W40 E30
Slim hot-rolled steel for internal openings that need fire protection, with 30 minutes' fire integrity.
EI30 · Integrity and insulation
JANISOL 2 EI30
Galvanised steel with Pyrobel 16 EI30 glass, a self-closer and drop-down seal, for 30 minutes' integrity and insulation.
Single door from £2,800 excl. VAT, ex-works.
E30 or EI30?

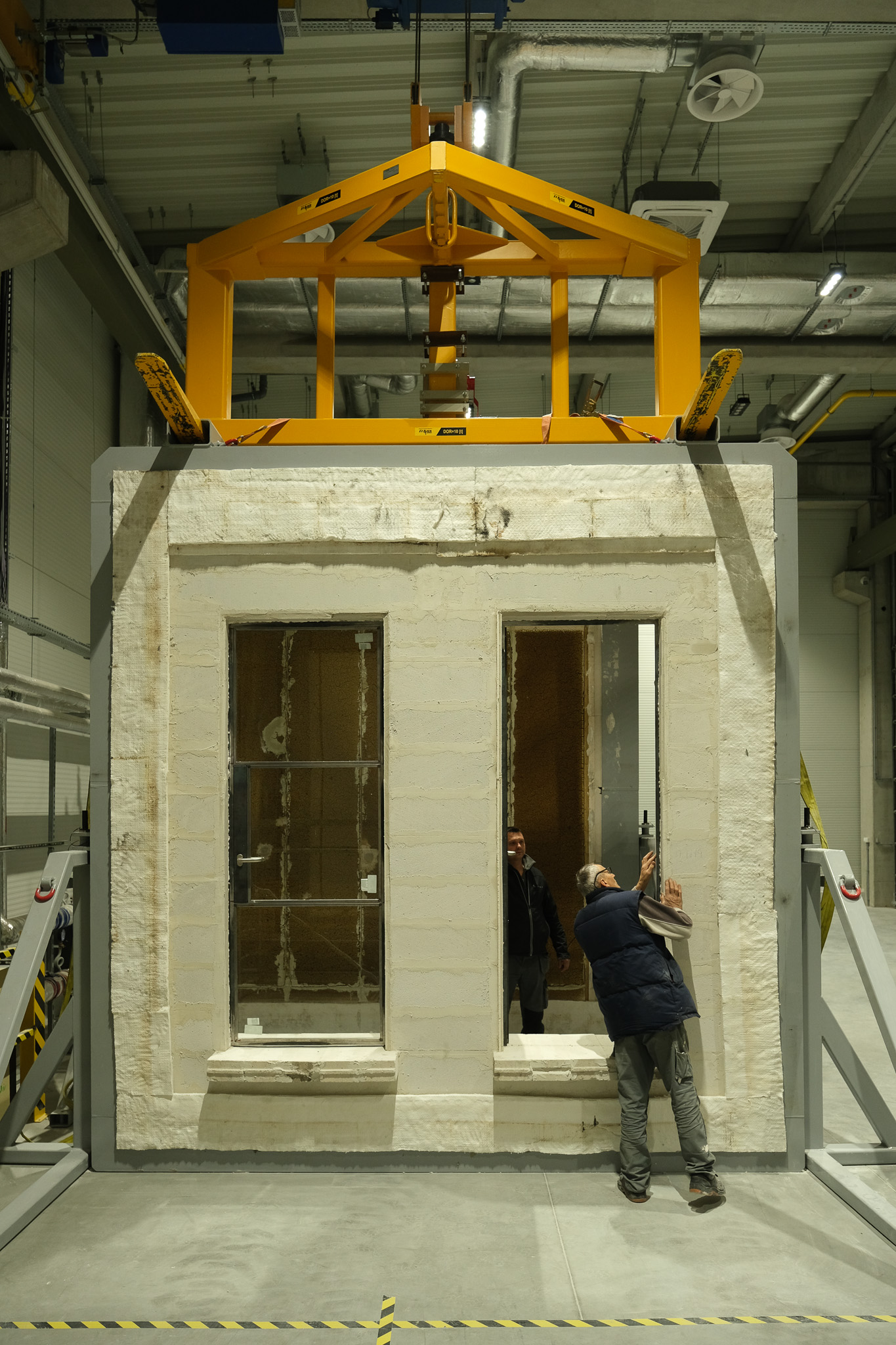

Our doors fitted in the furnace wall before a fire test.
E30: integrity
The door holds back flames and hot gases for 30 minutes. PI40 E30 and W40 E30 are integrity-rated.
EI30: integrity and insulation
As E30, and it also limits the heat that passes through the door, so the side away from the fire stays cooler. JANISOL 2 EI30 is rated EI30.
Which one you need
Your fire strategy, fire engineer or building control sets the rating for each opening. We can share test reports and classifications to support it.
Configurations
Single and double doors, doors with sidelights and toplights, and sidelights. Each product page has drawings, data sheets and test documents.
For specifiers
Test reports and data sheets
Fire test reports, classifications and data sheets are published on each product page and in our download library.
Finishes
Matt black RAL 9005 as standard. Other RAL colours add 5%; metallic and anodic finishes add 10%.
Options
Concealed self-closers, drop-down seals, extra glazing bars and brass rails. Handles are priced separately.
